MS G3 Series 7-10kW Single-Phase | 2 MPPT

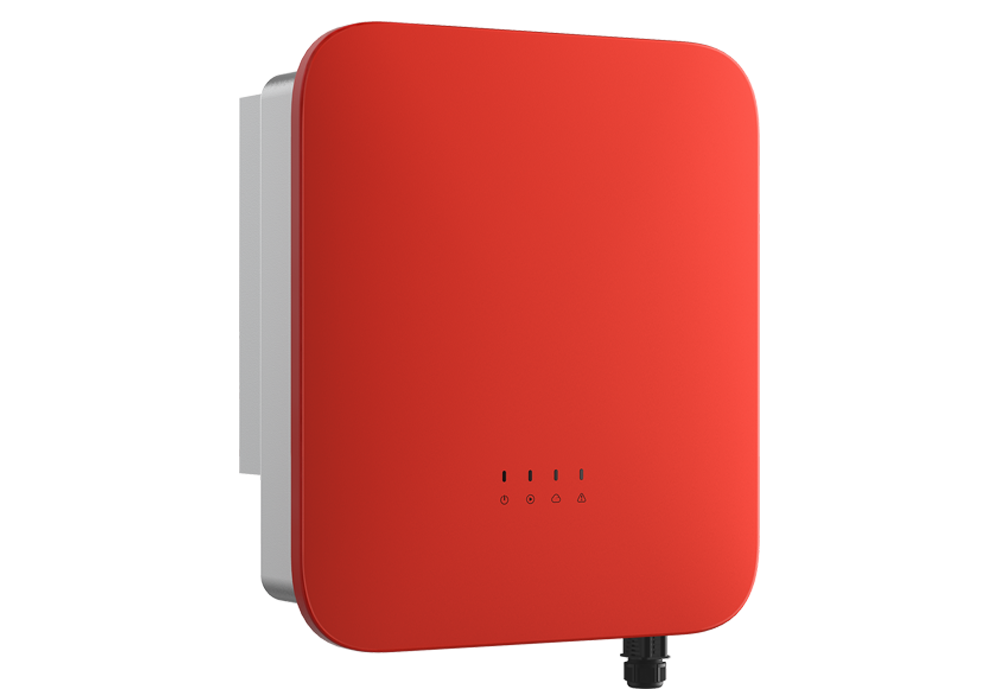

Residential PV Inverter MS G3 Series 7-10kW | Single-Phase | 2 MPPT

The MS G3 Series features a next-generation design and innovative topology, specifically engineered to meet market demand for high-power single-phase residential systems – ideal for homes with larger rooftop areas. By consolidating multiple small inverters into one unit, it significantly reduces both system costs and maintenance expenses while maximizing energy yields.

Available in 7kW/8kW/10kW power classes with 20A max input current, it supports all high-power modules and delivers 1.55x DC overmatching. Integrated safety features include:

DC arc-fault protection (AFCI)

Type II AC/DC surge protection (with DC-side lightning alarm)

Comprehensive hardware/software safeguards

✅ Key Advantages

50V ultra-low startup voltage

IP66 dust/water resistance

PID prevention & recovery

DC arc-fault detection

Type II AC/DC surge protection

⚡ AFCI 3.0 | Advanced Arc Hunting Technology

AFCI 3.0 utilizes AI algorithms to analyze massive datasets, creating proprietary arc signatures through A5 deep learning. Continuously adaptive detection models offer:

30A high-current compatibility (for large-format modules)

200m detection range

Proprietary control chip: Shutdown in <0.5s (vs. 2.5s industry standard)

100% detection accuracy: Zero false triggers

AFCI 3.0: Faster (<0.5s) | More Precise | Safer

Unmatched arc detection • Instant intelligent shutdown
