Lightweight Large-scale Electrolyzer
Product Certification:
CE
Hydrogen Production Rate (Nm³/h):
100-1500
Operating Pressure (MPa):
1.6(Adjustable)
Hydrogen Purity:
99.999%
Service Life:
25 Years (Overhaul Interval: 10 Years)
Home      Products     Hydrogen Production Electrolyzers     Alkaline Electrolyzers       Lightweight Large-scale Electrolyzer

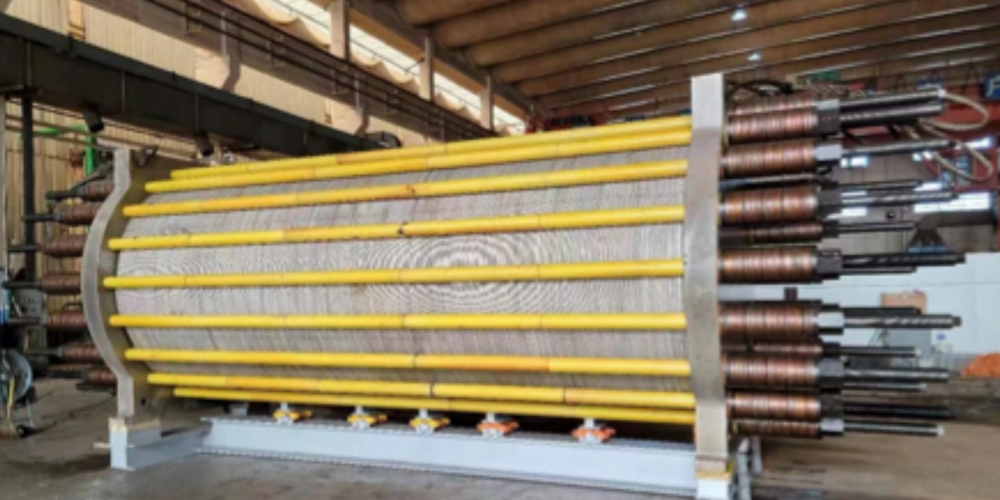

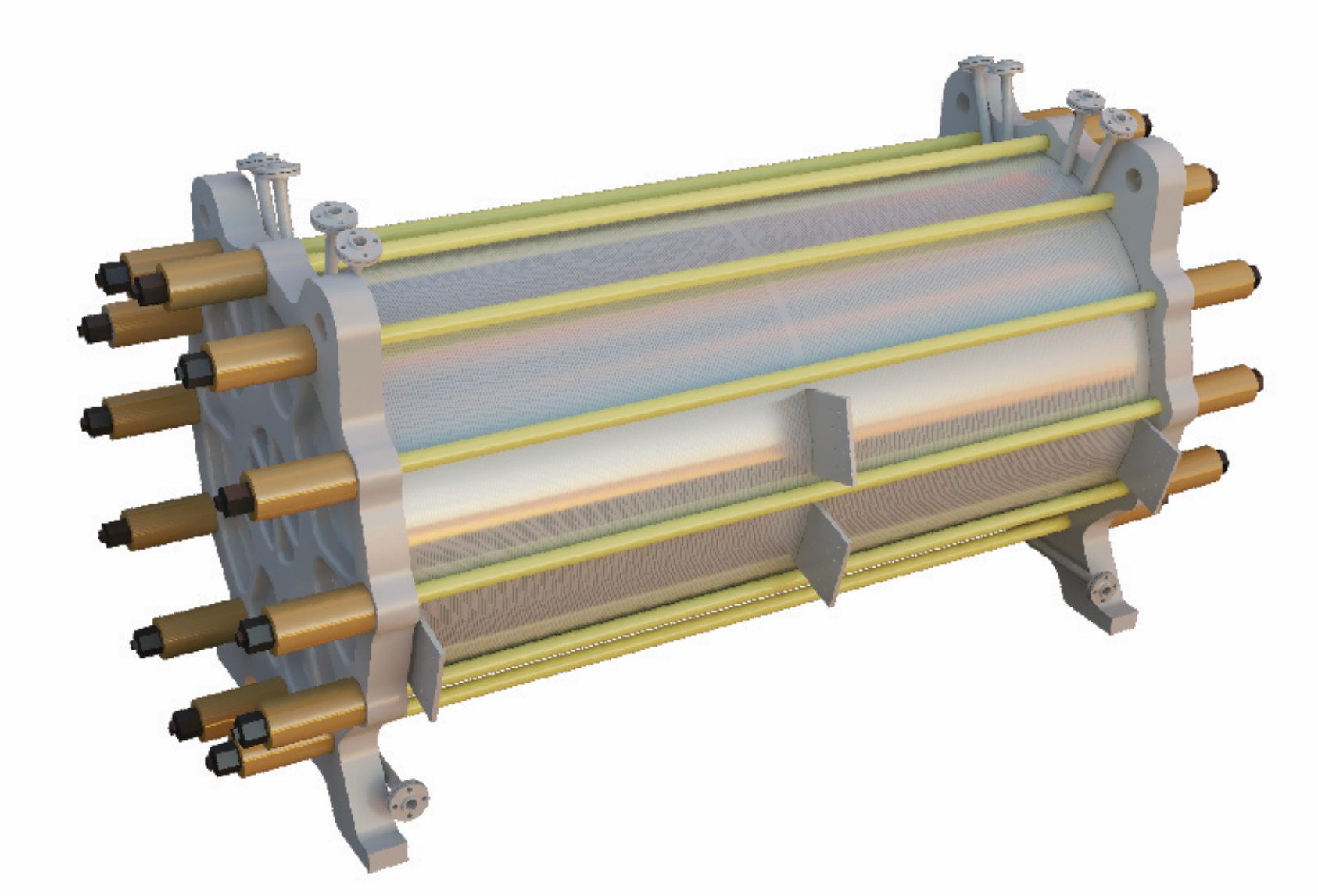

Lightweight Large-scale Electrolyzer

(Applicable to various working conditions including chemical, steel, power plants, and large-scale new energy hydrogen production)

 • Lightweight: Current density 4000A/m², approximately 230 cells. The electrolyzer body weighs only about 40 tons.

• High stability: Thicker electrode frames compared to other similar products in the industry, larger flow cross-section inside electrolysis cells, sufficient electrolyte circulation cooling, ensuring good temperature consistency in each electrolysis cell and uniform thermal expansion/contraction. Prevents individual cells from overheating and causing electrolyzer deformation failures.

• Long lifespan: Lightweight electrolysis cells (less than 30 tons) with reduced load on sealing gaskets, resulting in longer maintenance intervals and stable operation for over ten years.
